fesdrvs-16-270-p

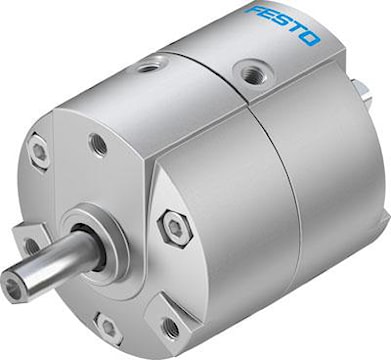

FESTO 1845715 DRVS-16-270-P semi-rotary drive
fesdrvs-16-270-p
FESTO 1845715 DRVS-16-270-P semi-rotary drive
Price
$250.59
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:FESTO
Manufacturer #:1845715
Description
semi-rotary drive DRVS-16-270-P Size=16, Cushioning angle=0,5 deg, Swivel angle=0 - 270 deg, Cushioning=P: Flexible cushioning rings/plates at both ends, Assembly position=Any
Specifications
| Brand Name | Festo | Item Name | Rotary Actuator |
| Type | Size 16, Spigot Shaft | Port Size | M5 |
| Body Material | Die-Cast Aluminum | Maximum Pressure | 8 bar |
| Temperature Rating | 0 - 60 °C | Series/Model | DRVS |
| Cylinder Action | Double Acting | Piston Rod Material | Steel |
| Mounting | Threaded | Dimensions | 52.7 mm dia x 93 mm L |
| Finish | Nickel-Plated | Standards | RoHS Compliant |
