hel62959
HELUKABEL CANADA 62959 MULTI 3C-12 TRAYCONTROL 600
hel62959
HELUKABEL CANADA 62959 MULTI 3C-12 TRAYCONTROL 600
Price
$8.9400
/ M
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:HELUKABEL CANADA
Manufacturer #:62959
Description

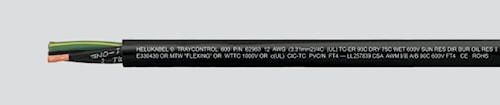

TRAYCONTROL® 600 flexible, oil resistant, open installation TC-ER, PLTC-ER, ITC-ER, NFPA 79. NFPA 79 conformant flexible power cable up to 600 V (WTTC 1000 V), for all machinery in plant construction. Suitable for installation in dry, humid and damp environments, outdoors and pipes. For underground installation and for open, unprotected installation from the cable rack to machines in industrial plants.
Specifications
| Brand Name | Helukabel | Sub Brand | Traycontrol® |
| Item Name | Control and Power Cable | Type | 600 Flexible, Oil-Resistant, TC-ER, PLTC-ER, ITC-ER |
| Number of Conductors | 3 | Conductor Size | 12 AWG |
| Conductor Material | Bare Copper | Outside Diameter | 10.2 mm |
| Stranded/Solid | Stranded | Voltage Rating | 600 V |
| Jacket Color | Black | Color Code | RAL 9005 |
| Insulation Material | PVC | Jacket Material | PVC |
| Temperature Rating | -40 to 105 °C | Standards | CSA Certified, UL Listed |
| Application | For All Machinery in New Plant Construction, Torsion Resistant, Exceptional Flexibility and Abrasion-Resistance and Installation in Dry, Humid and Damp Environments |
