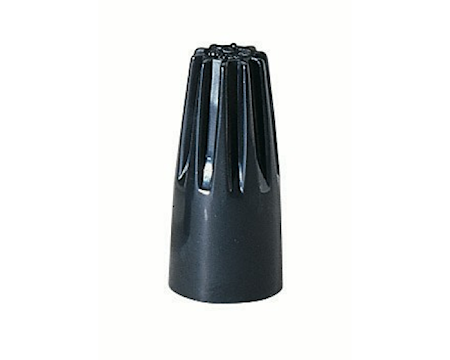

IDEAL INDUSTRIES 30-059 Wire-Nut® Wire Connector High Temperature 600 V, 1,6 Conductors Black

Inventory
Unavailable for order at Burlington
Manufacturer:IDEAL INDUSTRIES
Manufacturer #:30-059

Description

The connector that started it all, an American Classic.The IDEAL Wire-Nut® Wire Connector set new standards for innovation, quality and convenience when it was first introduced in 1928. As the first screw-on wire connector in America, it literally set the industry standard for years to come.With a fixed, square-wire spring and a positive grip shell, the Wire-Nut® is perfect to twist-on with fingers for a secure connection that will last. The refined wire range makes it the best choice for fine stranded wire applications. The Wire-Nut® also features a tough, flame-retardant thermoplastic shell that withstands environmental extremes and is reusable for easy circuit changes and addition.With five color-coded models available, Wire-Nut® Wire Connectors will handle any job from as small as #22 gauge wire up to #6 gauge wire.Additionally, Models 71B®, 72B®, and 73B®, in both color or black high-temp, are the only twist-on wire connectors rated for use in Air Handling Spaces. These connectors can be used on Class 2 or low-voltage connections inside plenums, ducts, and other environmental air handling spaces without the need for a box.The black high-temperature models are designed to withstand the extreme heat build-up found in high-wattage light fixtures and signs.

Specifications

Brand Name Ideal Sub Brand Wire-Nut®
Item Name Wire Connector Type High Temperature
Voltage Rating 600 V Conductor Size 22 - 12 AWG, 20 - 2 AWG Minimum, 14 - 3 AWG Maximum
Series/Model 59B Number of Conductors 1,6
Connection Type Twist-On Material Thermoplastic Polyester
Color Black Temperature Rating 150 °C
Standards CSA C22.2 #188, UL 486C Application Insulating or Joining 2 or More Conductors in Conditions Where Extreme Heat Buildup Occurs Such as High Wattage Fixtures and Signs
UPC 783250300594
