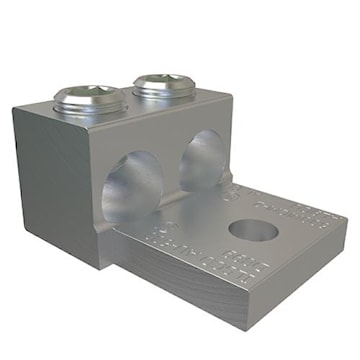

ILSCO AU-600 ClearChoice Mechanical Lug 600 kcmil - 2 AWG Aluminum
ilsau600
ILSCO AU-600 ClearChoice Mechanical Lug 600 kcmil - 2 AWG Aluminum
Inventory
Unavailable for order
Manufacturer:ILSCO
Manufacturer #:AU-600
Description
Dual rated aluminum mechanical lug, two conductor. Manufactured from high strength 6061-T6 aluminum alloy. Chamfered wire entry. Provides low contact resistance, ease of installation. Suitable for use with either copper or aluminum conductors. Ensures reliability for copper or aluminum conductors.
Specifications
| Brand Name | Ilsco | Sub Brand | ClearChoice |
| Item Name | Mechanical Lug | Type | AU:2 CONDUCTOR AL/CU |
| Conductor Type | Aluminum/Copper | Conductor Size | 600 kcmil - 2 AWG |
| Material | Aluminum | Number of Conductors | 2 |
| Voltage Rating | 2000 V | Mounting Hole Size | 17/32 in |
| Temperature Rating | 90 °C | Finish | Tin Plated |
| Color | Silver | Standards | CSA File No. LR-29601, UL 486A-B, UL E6207 |
| Application | Terminating Connector | UPC | 783669005684 |
Packages
| 1 - rarr_unit_1 | 3 - rarr_unit_2 |
