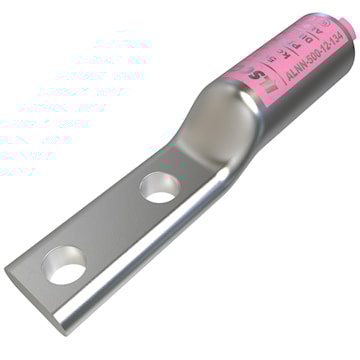

ILSCO ALNN-500-12-134 AL COMP NARROW 500 KCMIL 9/16-1-3/4 T UL
ilsalnn50012134
ILSCO ALNN-500-12-134 AL COMP NARROW 500 KCMIL 9/16-1-3/4 T UL
Price
$104.3546
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:ILSCO
Manufacturer #:ALNN-500-12-134
Description
Surecrimp Aluminum Compression Lug, Dual Rated, Aluminum material, Tin plated connector,Long barrel, narrow tang, 2 mounting hole(s), mounting bolt/stud size 1/2 in, mounting hole spacing 1.75 in., UL 486A/B Listed, C22.2 No. 65-03, 180° connecting angle, Copper/Aluminum Primary Conductor 500 kcmil, Contains DE-OX®, no sight window, Square tang end, rated for 35 kV, die color code Pink, primary color Silver, die index 300,
Specifications
| Brand Name | ILSCO | Sub Brand | Surecrimp |
| Type | ALNN:LONG NARROW TANG | Number of Holes | 2 |
| Barrel Length | 2.565 in | Material | Aluminum |
| Voltage Rating | 35,000 V | Barrel Type | Long |
| Strip Length | 66.738 mm | Temperature Rating | 90 degrees C |
| Standards | CSA File Number:LR-29601;UL Control Number:453G;UL File Number:E6207;UL / CULUS Specification:UL 486A/B Listed | Application | Aluminum Compression Lug |
| UPC | 783669687712 |
Packages
| 1 - rarr_unit_1 | 100 - rarr_unit_2 |
