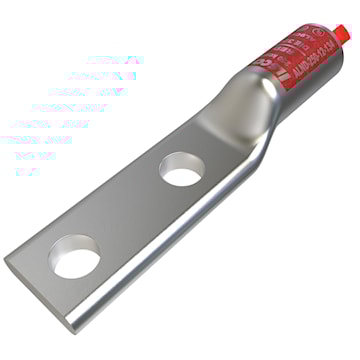

ILSCO ALND-250-12-134 Lug compression aluminium 250kmcil 2H red 1/2in
ilsalnd25012134
ILSCO ALND-250-12-134 Lug compression aluminium 250kmcil 2H red 1/2in
Inventory
Unavailable for order
Manufacturer:ILSCO
Manufacturer #:ALND-250-12-134
Description
Aluminum compression lug, chamfered barrel, color coded. Manufactured from high strength aluminum alloy. Provides low contact resistance, maximum conductivity and excellent crimping characteristics. Ensures reliability for copper or aluminum conductors. Prevents oxides from forming.
Specifications
| Brand Name | Ilsco | Sub Brand | SureCrimp® |
| Item Name | Compression Lug | Type | ALND:2 HOLE LONG BARREL |
| Conductor Size | 250 kcmil | Number of Holes | 2 |
| Barrel Diameter | 0.595 in ID x 0.924 in OD | Barrel Length | 1.535 in |
| Overall Length | 5.35 in | Color Code | Red/Silver |
| Material | Aluminum | Voltage Rating | 35 kV |
| Barrel Type | Long | Strip Length | 40.576 mm |
| Stud Hole Spacing | 1-3/4 in | Temperature Rating | 90 °C |
| Standards | CSA LR-29601, UL 453G, UL E6207, UL 486A/B | Application | Aluminum Compression Lug |
| UPC | 783669687408 |
Packages
| 1 - rarr_unit_1 | 100 - rarr_unit_2 |
