fesdsnu-25-50-ppv-a

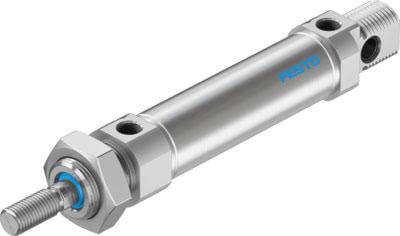

FESTO INC 19246 DSNU-25-50-PPV-A standards-based cylinder
fesdsnu-25-50-ppv-a
FESTO INC 19246 DSNU-25-50-PPV-A standards-based cylinder
Price
$108.58
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:FESTO INC
Manufacturer #:19246
Description
standards-based cylinder DSNU-25-50-PPV-A Based on DIN ISO 6432, for proximity sensing. Various mounting options, with or without additional mounting components. With adjustable end-position cushioning. Stroke=50 mm, Piston diameter=25 mm, Piston rod thread=M10x1,25, Cushioning=PPV: Pneumatic cushioning adjustable at both ends, Assembly position=Any
Specifications
| Brand Name | Festo | Item Name | Cylinder |
| Type | Standard | Port Size | G1/8 |
| Bore Size | 25 mm | Body Material | High Alloy Stainless Steel |
| Stroke Length | 50 mm | Maximum Pressure | 10 bar |
| Temperature Rating | -20 to 80 °C | Series/Model | DSNU |
| Cylinder Action | Double Acting | Piston Rod Material | High Alloy Stainless Steel |
| Dimensions | 191.5 mm L x 26.5 mm W | Standards | CETOP RP 52 P, ISO 6432, RoHS Compliant |
