hubhbl7810
HUBBELL CANADA ULC HBL7810 30A 600V 3P DISC SW
hubhbl7810
HUBBELL CANADA ULC HBL7810 30A 600V 3P DISC SW
Price
$136.52
/ EA
Inventory
2for delivery
3for pick up at
Burlington
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL7810
Description

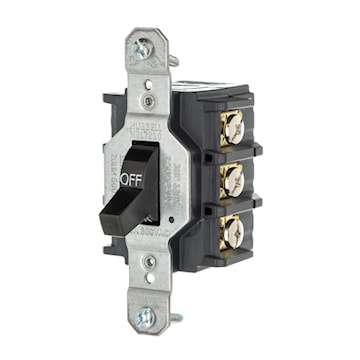

Circuit-Lock® Manual Toggle Controller/Motor Disconnect Switch, 3-pole 30A 600V AC, Back and Side Wired
Thermoset body provides high resistance to electrical arc tracking
Strong ON/OFF action with quick-make, slow break operation
Optional Side Finger Guards for close wall applications and finger safe environments
Four large silver alloy contacts per pole has excellent conductivity with maximum longevity
Lubrication-free controller with continued ON/OFF cycling even in harsh, dust and high heat environments
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Item Name | Motor Disconnect Switch |
| Type | Back & Side Wire | Voltage Rating | 600 V |
| Amperage Rating | 30 A | Maximum Load Capacity | 18000 W |
| Number of Poles | 3 | Color | Black |
| HP Rating | 20 hp | Grade | Industrial |
| Wiring Configuration | Back and Side Wired | Material | Stainless Steel |
| Standards | CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402 | UPC | 783585680507 |
