hubhbl3769

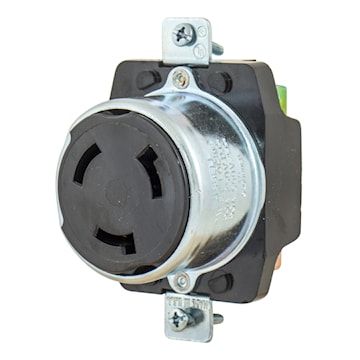

HUBBELL CANADA ULC HBL3769 Twist-Lock® Heavy Duty, Multi-Phase Locking Single Receptacle 50 A, Non-NEMA Black
hubhbl3769
HUBBELL CANADA ULC HBL3769 Twist-Lock® Heavy Duty, Multi-Phase Locking Single Receptacle 50 A, Non-NEMA Black
Price
$209.16
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL3769
Description
Hubbell TWIST-LOCK cable plugs and connectors are made of white nylon locking blade insert, black housing and 2 pieces screw cable clamp. Flanged inlet and outlet are made of white one-piece nylon. Box single/duplex receptacle are made of black or orange (isolated) thermoplastic. Full line of accessories like stainless steel and weatherproof cover plate. They follow NEMA and NON-NEMA lock coding version 1-2-3-4 pole, 20-30-50 amp, 125-250-277-347-480-600 volts.
Thermoset construction offers high heat resistance
Armored housing provides superior impact resistance
One piece contacts provide low operating temperatures
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Twist-Lock® |
| Item Name | Locking Single Receptacle | Type | Heavy Duty, Multi-Phase |
| Grade | Industrial | Size | Standard |
| Voltage Rating | 600 VAC, 250 VDC | Amperage Rating | 50 A |
| Wattage | 30000 W | Number of Poles | 3 |
| Number of Wires | 4-Wire Grounding | NEMA Rating | Non-NEMA |
| Conductor Size | 10-6 AWG | Material | Plastic |
| Color | Black | Phase | Multi Phase |
| Terminal Connection | Screw | Dielectric Strength | Withstands 2,000V minimum |
| Mounting Type | Screw, Flush | Environmental Conditions | Indoor Dry Unless Protected by Additional Means |
| Standards | UL 498 | Application | Heavy Duty Industrial |
| UPC | 783585236469 |
