hubhbl2730
HUBBELL CANADA ULC HBL2730 LKG RCPT, 30A 3P 480V, L16-30R, BK
Final sale
hubhbl2730
HUBBELL CANADA ULC HBL2730 LKG RCPT, 30A 3P 480V, L16-30R, BK
Inventory
Unavailable for order
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL2730
Description

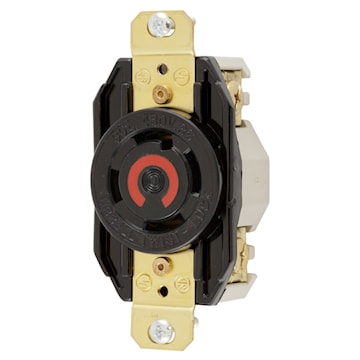

Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, L16-30R, Screw Terminal, Black
High-impact, abuse-resistant nylon face
Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
Face color coding by voltage facilitates locating and mating of proper devices
All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Twist-Lock® |
| Type | Heavy Duty | Size | 3.28 in x 1.7 in x 1.31 in |
| Voltage Rating | 480 VAC | Amperage Rating | 30 A |
| Wattage | 14400 W | Number of Poles | 3 |
| Number of Wires | 4 | NEMA Rating | L16-30R |
| Material | Nylon | Color | Black |
| Phase | 3 | Dielectric Strength | Withstands 2,000V minimum |
| Environmental Conditions | Indoor Dry Unless Protected by Additional Means | Standards | Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498 |
| Application | Heavy Duty Industrial | UPC | 783585236155 |
