hubhbl2430sw

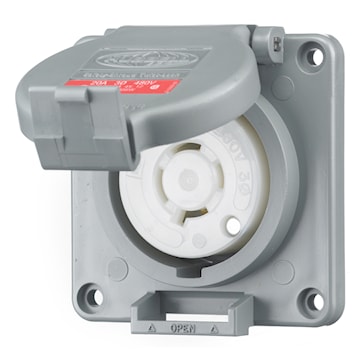

HUBBELL CANADA ULC HBL2430SW Twist-Lock® Heavy Duty, Shrouded Locking Single Receptacle 20 A, L16-20R Gray and White
hubhbl2430sw
HUBBELL CANADA ULC HBL2430SW Twist-Lock® Heavy Duty, Shrouded Locking Single Receptacle 20 A, L16-20R Gray and White
Price
$213.18
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL2430SW
Description
Watertight Safety-Shroud™ Twist-Lock® receptacle made of thermoplastic. with 3 pole, 4 wire, 3 phase 480 V AC.
High impact, thermoplastic housing for heavy-duty industrial environments
Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
Catalog number and color coded voltage rating are visible even when in use
Catalogue number and color coded voltage rating are visible even when in use
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Twist-Lock® |
| Item Name | Locking Single Receptacle | Type | Heavy Duty, Shrouded |
| Grade | Industrial | Size | Standard |
| Voltage Rating | 480 VAC | Amperage Rating | 20 A |
| Wattage | 9600 W | Number of Poles | 3 |
| Number of Wires | 4-Wire Grounding | NEMA Rating | L16-20R |
| Conductor Size | 14-8 AWG | Material | Thermoplastic |
| Color | Gray and White | Phase | 3 |
| Terminal Connection | Screw | Dielectric Strength | Withstands 2,000V minimum |
| Mounting Type | Screw, Surface | Environmental Conditions | Watertight |
| Standards | UL 498, NEMA WD-1, WD-5 | Application | Heavy Duty Industrial Shrouded Watertight |
| UPC | 783585231426 |
