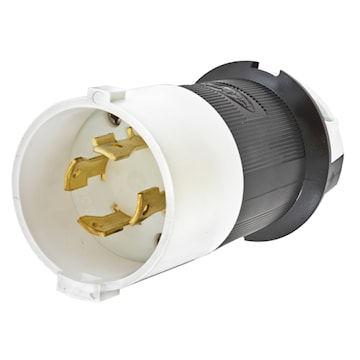

HUBBELL CANADA INC. HBL2741S Twist-Lock®, Watertight Safety-Shroud® Locking Male Plug 30 A, 600 V, Standard, Shrouded
hubhbl2741s
HUBBELL CANADA INC. HBL2741S Twist-Lock®, Watertight Safety-Shroud® Locking Male Plug 30 A, 600 V, Standard, Shrouded
Inventory
Unavailable for order
Manufacturer:HUBBELL CANADA INC.
Manufacturer #:HBL2741S
Description
Twist-Lock® safety-shroud plug made of nylon with 3 pole, 4 wire grounding, 125 V AC, 15 A. 0.23 to 0.72 inch cord diameter.
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Twist-Lock®, Watertight Safety-Shroud® |
| Item Name | Locking Male Plug | Type | Standard, Shrouded |
| Number of Wires | 4 | Number of Poles | 3 |
| Voltage Rating | 600 V | Amperage Rating | 30 A |
| Conductor Size | 16-8 AWG | Color/Finish | Black and White |
| Cord Type | Portable | Cord Size | 0.35 - 1.15 in |
| Phase | 3 | Terminal Connection | Pressure Screw |
| Temperature Rating | -40 to 75 °C Continuous | Maximum Load Capacity | 18000 W |
| NEMA Rating | L17-30P | Dielectric Strength | 2000 V |
| Material | Nylon | Grounding | Yes |
| Degree of Protection | IP20 | Mounting Type | Surface, Cord |
| Dimensions | 4.21 in H | Environmental Conditions | Indoor Dry Unless Protected By Additional Means, UL94 HB Flammability |
| Standards | UL 498, CSA C22.2 No. 42, Federal Specification W-C-596 | Application | For Extra Heavy Duty Industrial Applications |
| UPC | 783585234946 |
