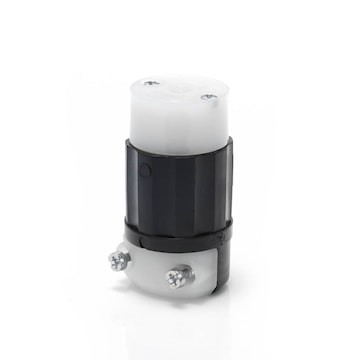

LEVITON ML3-C Black & White Straight Locking Connector 15 A, ML1R Black/White
levml3c
LEVITON ML3-C Black & White Straight Locking Connector 15 A, ML1R Black/White
Price
$53.72
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:LEVITON
Manufacturer #:ML3-C
Description
Levitons industry leading locking grade connector offer superior performance, long lasting reliability. Ergonomic fluted body design with radial grip ridge is ideal for gripping, turning and pulling. NEMA configuration, agency certifications and device rating are molded on front of the device to assist with identifications. Molded in strip gage provides measurement for proper strip length of conductor.
Specifications
| Brand Name | Leviton | Sub Brand | Black & White |
| Item Name | Locking Connector | Type | Straight |
| Grade | Industrial | Size | 106 Dia x 2.156 H IN |
| Voltage Rating | 125/250 V | Amperage Rating | 15 A |
| Number of Poles | 3 | Number of Wires | 3 |
| NEMA Configuration | ML-1R | NEMA Rating | ML1R |
| Conductor Size | 18 - 14 AWG | Material | Super Tough Nylon (Body) |
| Color | Black/White | Terminal Connection | Screw Terminal |
| Grounding | Non-Grounding | Contact Material | Solid Brass |
| Dimensions | 2.156 in H | Mounting Type | Cable |
| Environmental Conditions | Flammability (Rated HB Or Better UL94) | Standards | NEMA (WD-1, WD-6), ANSI (C-73), NOM Certified (057), CSA C22.2 No. 42 (File LR-406), UL 498 (File E13393), UL Fed Spec WC-596 (File E13393) |
| Application | Industrial | UPC | 078477987346 |
