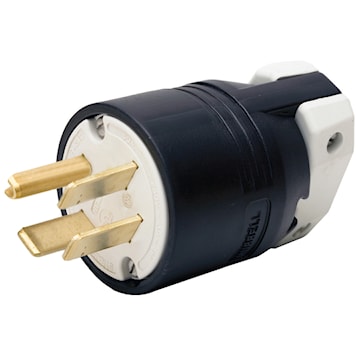

HUBBELL CANADA ULC HBL8451C Insulgrip® Straight Blade Plug 50 A, 250 VAC, Insulgrip, Standard Sized
hubhbl8451c
HUBBELL CANADA ULC HBL8451C Insulgrip® Straight Blade Plug 50 A, 250 VAC, Insulgrip, Standard Sized
Price
$254.03
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL8451C
Description
Hubbell PRO cable connector strait blade, 2-3 poles, 15-20-30-50-60 amp, 125-250-480-600 volts are made of white nylon insert into thermoplastic black housing with 2 screws cable holder or molded white one piece flanged inlet/outlet. Strait inline and 90 degrees angled models also available.
Gripping ribs provide secure gripping area
Supertough nylon housing
Catalog number, ratings and certifications molded in face
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Insulgrip® |
| Item Name | Straight Blade Plug | Type | Insulgrip, Standard Sized |
| Number of Wires | 4 | Number of Poles | 3 |
| Voltage Rating | 250 VAC | Amperage Rating | 50 A |
| Conductor Size | 12-4 AWG | Color/Finish | Black and White |
| Cord Type | Portable | Phase | 3 |
| Terminal Connection | Screw | Maximum Load Capacity | 12500 W |
| NEMA Rating | 15-50P | Material | Thermoplastic |
| Grounding | Yes | Mounting Type | Cord |
| Environmental Conditions | Indoor Dry Unless Protected by Additional Means | Standards | UL 498, NEMA WD-1, WD-5 |
| Application | Industrial/Commercial | UPC | 783585015163 |
