hubhbl15w47a

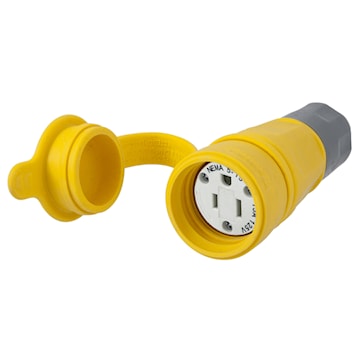

HUBBELL CANADA ULC HBL15W47A Elastogrip® Straight Blade Female Connector Watertight, Standard 15 A, 125 V, 3-Wire Grounding Conductors Yellow
hubhbl15w47a
HUBBELL CANADA ULC HBL15W47A Elastogrip® Straight Blade Female Connector Watertight, Standard 15 A, 125 V, 3-Wire Grounding Conductors Yellow
Price
$77.44
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL15W47A
Description
Straight blade connector. PVC-yellow housing, polycarbonate-clear retainer, nylon cord and brass terminal. Smooth body design minimizes collection points simplifying the wash down process. Strain relief nut always seals on the body, minimizing debris collection. Stainless steel hardware and corrosion-resistant connection points.
Smooth body design minimizes collection points simplifying thewash down process
Strain relief nut always seals on the body, minimizing debris collection
Stainless steel hardware and corrosion-resistant connection points
Smooth body design minimizes collection points simplifying the wash down process
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Elastogrip® |
| Item Name | Straight Blade Female Connector | Type | Watertight, Standard |
| Voltage Rating | 125 V | Amperage Rating | 15 A |
| Conductor Size | 14-12 AWG | Number of Conductors | 3-Wire Grounding |
| Connection Type | Screw Terminal | Phase | 1 |
| Material | Thermoplastic Elastomer | Color | Yellow |
| Contact Material | Nickel Plated Brass | Length | 4.42 in |
| Diameter | 1.85 in | Mounting | Surface, Cord |
| NEMA Rating | 5-15R | Temperature Rating | -40 to 60 °C Continuous |
| Standards | UL 498, CSA C22.2 No. 42, NEMA WD-1, WD-6, NEMA Type 4, 4X, 12, 6, 6P, NSF Certified | Application | Industrial/Commercial |
| UPC | 783585131276 |
