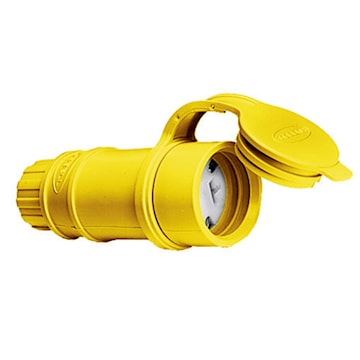

HUBBELL CANADA ULC HBL15W33 Straight Blade Straight Blade Connector Elasto-Grip, Watertight, Insulated, Standard, 2-Pole 20 A, 125 V, 3 Conductors Yellow
hubhbl15w33
HUBBELL CANADA ULC HBL15W33 Straight Blade Straight Blade Connector Elasto-Grip, Watertight, Insulated, Standard, 2-Pole 20 A, 125 V, 3 Conductors Yellow
Price
$84.35
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:HUBBELL CANADA ULC
Manufacturer #:HBL15W33
Description
Elastogrip® Straight blade connector. Thermoplastic elastomer housing. Integral weatherproofing shroud seals connection between plug and connector. Nylon compression nut keeps water and dust from getting into the body around the cord.
Thermoplastic elastomer housing
Integral weatherproofing shroud seals connection between plug and connector
Nylon compression nut keeps water and dust from getting into the body around the cord
Specifications
| Brand Name | Hubbell Wiring Device Kellems | Sub Brand | Straight Blade |
| Item Name | Straight Blade Connector | Type | Elasto-Grip, Watertight, Insulated, Standard, 2-Pole |
| Voltage Rating | 125 V | Amperage Rating | 20 A |
| Conductor Size | 14 - 12 AWG | Number of Conductors | 3 |
| Connection Type | Screw Terminal | Material | Composite |
| Color | Yellow | Length | 3.00 in |
| Mounting | Cord | NEMA Rating | 5-20R |
| Temperature Rating | 75 °C Maximum Continuous, -40 °C Minimum Without Impact | Standards | NEMA WD-1 and WD-5, UL 498 |
| Application | Industrial/Commercial | UPC | 783585013343 |
