VOTATEC GROUP CORP BAA-023 WH 15A A+A USB PLUG.
votbaa023wh
VOTATEC GROUP CORP BAA-023 WH 15A A+A USB PLUG.
Price
$16.00
/ EA
Inventory
20for delivery
0for pick up at
Burlington
Manufacturer:VOTATEC GROUP CORP
Manufacturer #:BAA-023 WH
Description

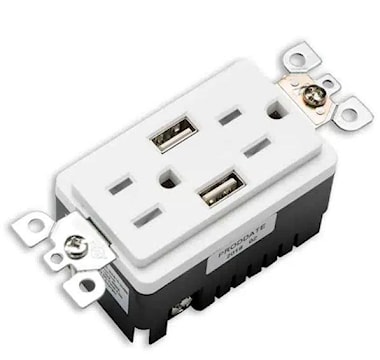

15 A USB Charger and Duplex Receptacle (TR) TYPE A with good heat dissipation. Design of bottom grid, good cooling. Super high impact resistance and thermal stability. Cover pans are made of high quality polycarbonate. Chemical corrosion resistance. Fingerprint-resistant zinc plated mounting brackets. Security doors designed to prevent people accidental exposure. Mechanical life unloaded plug=5000 sec. UL498 UL943 CSA-C22.2 No.42 USB1.0/2.0/3.0. Housing material flame retardant grades UL94-V2.
Specifications
| Brand Name | Votatec | Item Name | Combination USB Charger with Duplex Receptacle |
| Type | Duplex, Flame Retardant, Tamper-Resistant | Voltage Rating | 125 VAC |
| Amperage Rating | 15/20 A | Conductor Size | 14-10 AWG |
| Finish | Zinc-Plated | Frequency Rating | 60 Hz |
| Mounting Type | Bracket | Temperature Rating | -20 to 60 °C |
| Standards | cULus Listed, CE Certified, UL 498, UL 943, CSA C22.2 No. 42, RoHS Compliant, UL 94V-2 Flammability Rating |
