bem4235199000
BEMAG TRANSFORMER INC 423-5199-000 30 KVA 3 PHASE600-208/120 ALU
bem4235199000
BEMAG TRANSFORMER INC 423-5199-000 30 KVA 3 PHASE600-208/120 ALU
Price
$2,434.13
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:BEMAG TRANSFORMER INC
Manufacturer #:423-5199-000
Description

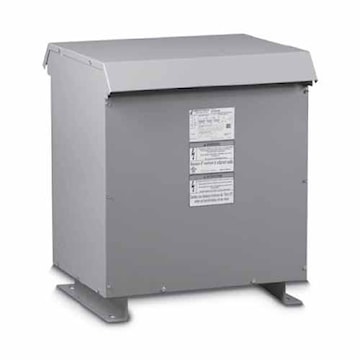

30 KVA 3 Phase Ventilated General Purpose Transformer with isolated type, primary 600 V Delta, secondary 208Y/120 V, aluminum windings, NEMA 3R enclosure. For general loads, including lighting, industrial and commercial applications.
Specifications
| Brand Name | Bemag Transformer | Item Name | General-Purpose Transformer |
| Type | Ventilated | Primary Voltage | 600 V |
| Secondary Voltage | 208Y/120 V | VA Rating | 30 kVA |
| Frequency Rating | 60 Hz | Material | Electrical Steel |
| Phase | 3 | Color | Gray |
| Finish | Powder-Coated | Dimensions | 22 in W x 22 in D x 25 in H |
| Enclosure Type | NEMA 3R | Temperature Rating | 150 °C |
| Standards | ANSI Specified, C802 Compliant, CSA Certified, cUL Listed, NEMA, NRCAN-2019, UL Listed | Application | For General Loads, Including Lighting, Industrial and Commercial Applications |
