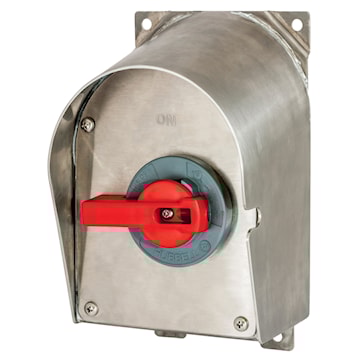

HUBBELL CANADA INC. HBLDS3SSR Motor Disconnects Standard, Unfused, Sloped Top Enclosed Disconnect Switch 30 A, 600 V, 3 P, Stainless Steel NEMA 4X

Inventory
Unavailable for order
Manufacturer:HUBBELL CANADA INC.
Manufacturer #:HBLDS3SSR
Documents Documents

Description

Circuit-LockĀ® Non-metallic disconnect is frequently used in harsh environments. Frequent wash down, hot and high pressure water, caustic cleaning agents and UV light are common place. Permanent labelless marking IP69k and type 4X, 12 water ingress protection. Molded in corrosion and impact resistant material that is UV stabilized SCCR rating of 65 kA when protected by class-J fuses. Highly visible red handle which meets OSHA LO/TO capabilities. Cover cannot be removed with switch in the On position. Accepts up to 2 auxiliary contacts.

Specifications

Brand Name Hubbell Wiring Device Kellems Sub Brand Motor Disconnects
Item Name Enclosed Disconnect Switch Type Standard, Unfused, Sloped Top
Voltage Rating 600 V Amperage Rating 30 A
Phase 3 Load Rating 18000 W
Number of Poles 3 Connection Type Pressure Screw
Housing Material Stainless Steel Mounting Type Screw
NEMA Rating NEMA 4X Temperature Rating -40 °C
Standards UL 508 Application For Motor Starting without Overload Protection
UPC 783585541549

Packages
