LUMINIZ INC TRTL0360 60W, IN: 120V AC, OUT:24V DC
Description

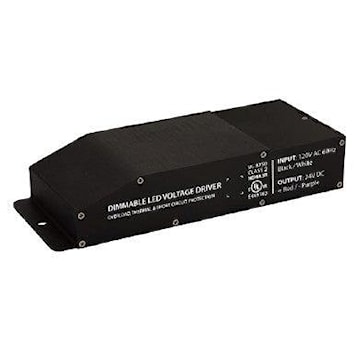

60 W Tapelight Transformer A dimmable voltage LED driver is class 2 rated and designed to operate with any standard MLV/Incandescent TRIAC (Leading edge) dimmer switch. Encased in a low profile aluminum enclosure that includes 2 knock-outs to enable easy installation makes it the perfect choice for under cabinet lights, tapelights and various LED fixtures installations. Our electrical specification includes Auto Reset, over current and short circuit protection. Efficiency of 90% and higher allows the driver to operate at low temperatures.
Specifications
Brand Name | Luminiz | Item Name | LED Strip Tape Light Transformer |
Primary Voltage | 120 VAC | Secondary Voltage | 24 VDC |
Efficiency | 90% | Power Factor | 0.95 |
Material | Aluminum | Amperage Rating | 0.61 A Input, 2.63 A Output |
Power Rating | 60 W | Dimensions | 6.77 in L x 2.67 in W x 1.26 in H |
Standards | cULus Listed, Class 2, FCC 15 Part 2, UL 8750 |
