VOTATEC GROUP CORP BY-F2030CA RUN MAN CMB TWNHD120/347V 90M
votbyf2030ca
VOTATEC GROUP CORP BY-F2030CA RUN MAN CMB TWNHD120/347V 90M
Inventory
Unavailable for order
Manufacturer:VOTATEC GROUP CORP
Manufacturer #:BY-F2030CA
Description

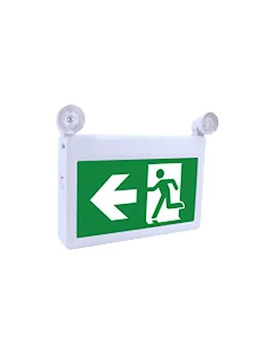

2.4W Combo Emergency Light. Lamp heads: 2x1.2W provide 150lm output/ Running man: 1.1W(Emergency Mood). . Injection-molded thermoplastic ABS housing. Plastic enclosure with 5VA flame retardant. Single and double face universal. Easy replacement pictogram design. 120/347VAC Dual voltage operation. Test switch and charge LED indicator. 3.6V/1800 Mah long-life, maintenance-free, rechargeable Ni-Cad battery. SMD 1.2W high power LED, CCT 6500K for emergency lamp heads. SMD 2835 LED, CCT 6500K for LED escape sign. Min 90 minutes discharge after charge battery 24 Hours.
Specifications
| Brand Name | Votatec | Item Name | Combination Emergency Light |
| Type | Maintenance-Free | Fixture Wattage | 2.4 W |
| Emergency Illumination Time | 90 min | Lamp Type | 6500 K, 150 lm LED |
| Battery Type | 1800 mAh 3.6 V Rechargeable Nickel-Cadmium | Dimensions | 13.6 in W x 9.1 in H |
| Mounting | Ceiling, Side, Wall | Housing Material | ABS |
| Input Voltage | 120 - 347 VAC | Face Type | Single/Double |
| Temperature Rating | 50 - 104 °F | Warranty | 5 yr |
| Standards | cULus Listed, CSA C22.2 No. 141-10 |
