fessv-5-m5-b

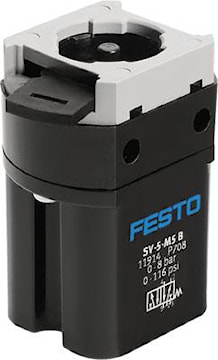

FESTO INC 11914 SV-5-M5-B front panel valve
fessv-5-m5-b
FESTO INC 11914 SV-5-M5-B front panel valve
Price
$158.75
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:FESTO INC
Manufacturer #:11914
Description
front panel valve SV-5-M5-B Valve function=5/2 monostable, Type of actuation=manual, Standard nominal flow rate=95 l/min, Operating pressure MPa=0 - 0,8 MPa, Operating pressure=0 - 8 bar
Specifications
| Brand Name | Festo | Item Name | Compressed Air Front Panel Valve |
| Type | 2-Position, 5-Way, Monostable | Pressure Rating | 0 - 8 bar |
| Body Material | Plastic | Series/Model | SV |
| Nominal Size | 2.3 mm | Actuator | Manual |
| Flow Rate | 95 l/min | Softgoods Material | NBR |
| Dimensions | 38 mm L x 28 mm W | Temperature Rating | -10 to 60 °C |
