fesmfh-3-1/4

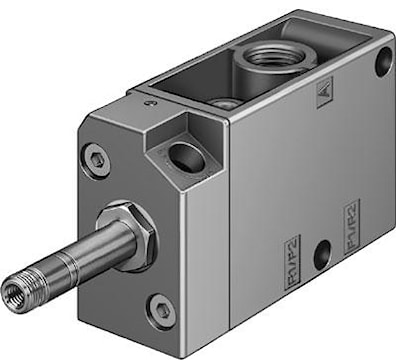

FESTO INC 9964 MFH-3-1/4 solenoid valve
fesmfh-3-1/4
FESTO INC 9964 MFH-3-1/4 solenoid valve
Price
$303.81
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:FESTO INC
Manufacturer #:9964
Description
solenoid valve MFH-3-1/4 With manual override, without solenoid coil or socket. Solenoid coil and socket should be ordered separately. Valve function=3/2 closed, monostable, Type of actuation=electrical, Width=30,5 mm, Standard nominal flow rate=800 l/min, Operating pressure MPa=0,15 - 0,8 MPa
Specifications
| Brand Name | Festo | Item Name | Compressed Air Solenoid Valve with Manual Override |
| Type | 2-Position, 3-Way, Closed, Monostable, Single | Pressure Rating | 1.5 - 8 bar |
| Body Material | Die-Cast Aluminum | Series/Model | MFH |
| Nominal Size | 7 mm | Actuator | Electrical, Pilot |
| Flow Rate | 800 l/min | Softgoods Material | NBR/TPE-U (PU) |
| Dimensions | 50 mm L x 30.4 mm W x 126 mm H | Temperature Rating | -5 to 40 °C |
| Standards | cULus Listed, RoHS Compliant |
