omrxs2cd4s1
OMRON CANADA INC. XS2CD4S1 6mm DC,STRT,S-ON,SOCKT ASYM
omrxs2cd4s1
OMRON CANADA INC. XS2CD4S1 6mm DC,STRT,S-ON,SOCKT ASYM
Price
$16.54
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:XS2CD4S1
Description

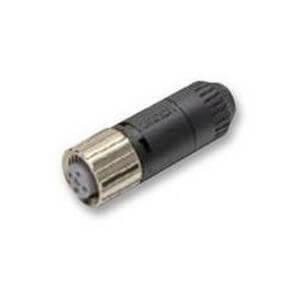

Field assembly connector, M12 straight socket (female), 4-poles, A coded, screw connection, for cable diameters 5-6 mm
Specifications
| Brand Name | Omron | Item Name | Circular Connector |
| Type | 4-Pole, Straight | Voltage Rating | 36 VDC |
| Amperage Rating | 1.5 A | Terminal Connection | Crimp, Screw |
| Cable Size | 5 - 6 mm | Contact Material | Brass |
| Contact Plating | Gold | Housing Material | Polybutylene Terephthalate Shell |
| Dimensions | 58.7 mm L | Series/Model | XS2 |
| Cable Type | M12 | Degree of Protection | IP67 |
| Temperature Range | -25 to 70 °C | Standards | UL 2238 |
| UPC | 612647106188 |
Packages
| 1 - rarr_unit_1 |
