OMRON CANADA INC. 445064040 ER5018-030N

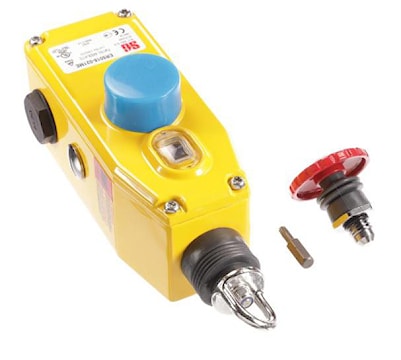

Compact Rope Pull Emergency Stop Switch. Compact size allows this switch to be used on smaller machines with a mounting width of 40 mm (1.57 in.) and covering rope spans up to 40 m (131 ft.). Tension indicator-the tension indicator makes the system easy to set up and to maintain the proper rope tension. Contact arrangements of 2 N/C + 1 N/O or 3 N/C. IP67 (NEMA 6) enclosure enables the ER5018 switch to withstand water wash down cleaning. Heavy-duty housing-the die-cast housing and stainless steel eye nut makes the ER5018 suitable for demanding industrial applications. Integral E-Stop-the optional E¬ stop provides emergency stopping at the extreme end of the installation. Reset button-the blue reset button must be pushed in order to return to “machine run” condition following switch actuation by a pulled or slacked rope. Vibration tolerant-the snap-acting switch contacts protect against nuisance tripping due to vibration.
