omrh3yn2dc24

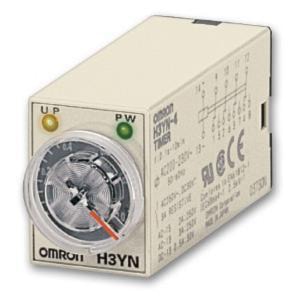

OMRON CANADA INC. H3YN2DC24 TIMER MINI-MULTI TIME
omrh3yn2dc24
OMRON CANADA INC. H3YN2DC24 TIMER MINI-MULTI TIME
Price
$136.00
/ EA
Inventory
1for delivery
0for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:H3YN2DC24
Description
Timer, plug-in, 8-pin, multifunction, 0.1 s-10 m short-time range model, DPDT, 24 VDC supply voltage
Specifications
| Brand Name | Omron | Item Name | Solid State Timer |
| Type | Miniature, Multi-Function | Supply Voltage | 24 VDC |
| Timing Range | 0.1 - 1 sec | Contact Configuration | 4PDT |
| Contact Rating | 5 A at 250 VAC | Reset Time | 0.1 sec |
| Dimensions | 21.5 mm W x 63 mm D x 28 mm H | Series/Model | H3Y |
| Power Consumption | 0.9 W at 24 VDC | Contact Material | Silver |
| Accuracy | +/-1% | Terminal Connection | Plug-In, 8-Pin |
| Resistance | 100 MO | Dielectric Strength | 2000 VAC at 50/60 Hz, 1500 VAC at 50/60 Hz, 1000 VAC at 50/60 Hz |
| Operating Cycles | 10000000 Mechanical, 500000 Electrical | Color/Finish | Beige |
| Degree of Protection | IP40 | Mounting | DIN Track, Surface |
| Temperature Rating | -10 to 55 °C | Environmental Conditions | 35 - 85% Humidity |
| Standards | CCC Certified, CE Certified, CSA Certified, LR Rated, RU Listed | UPC | 612647102736 |
