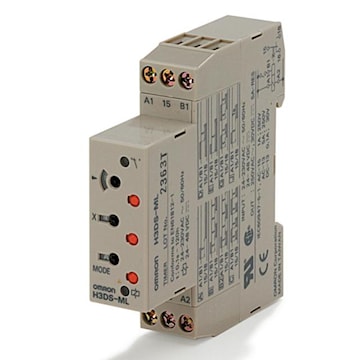

OMRON CANADA INC. H3DSMLAC24230DC2448 17.5MM TIMER DIN. MNT.
omrh3dsmlac24230dc2448
OMRON CANADA INC. H3DSMLAC24230DC2448 17.5MM TIMER DIN. MNT.
Price
$125.00
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:H3DSMLAC24230DC2448
Description
Timer, DIN rail mounting, 17.5 mm, 24-230 VAC/24-48 VDC, multifunction, 0.1 s-120 h, SPDT, 5 A, 'Smart Dial' lockable settings
Specifications
| Brand Name | Omron | Item Name | Analog Timer |
| Type | Multifunction | Supply Voltage | 24 - 230 VAC, 24 - 48 VDC |
| Timing Range | 0.1 sec - 120 hr | Contact Configuration | SPDT |
| Contact Rating | 5 A at 250 VAC, 5 A at 30 VDC (Resistive Load), 1 A at 250 VAC (Inductive Load) | Reset Time | 0.1 sec |
| Dimensions | 17.5 mm W x 74 mm D x 80 H | Amperage Rating | 5 A |
| Frequency Rating | 50/60 Hz | Power Consumption | 32 VA at 230 VAC, 0.7 W at 24 VDC, 1.4 W at 48 VDC |
| Contact Material | Silver | Accuracy | +/-1% |
| Terminal Connection | Screwless Clamp | Resistance | 100 MO |
| Dielectric Strength | 2000 VAC, 1000 VAC | Operating Cycles | 10000000 Mechanical, 100000 Electrical |
| Color/Finish | Light Gray | Degree of Protection | IP30 |
| Mounting | DIN Rail | Temperature Rating | -10 to 55 °C |
| Environmental Conditions | 35 - 85% Humidity | Standards | CE Certified, CSA Certified, RU Listed |
| UPC | 612647102717 |
