omrh3dkfacdc24240
OMRON CANADA INC. H3DKFACDC24240 TWIN AC/DC 24-240V SPDT
omrh3dkfacdc24240
OMRON CANADA INC. H3DKFACDC24240 TWIN AC/DC 24-240V SPDT
Price
$201.00
/ EA
Inventory
1for delivery
3for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:H3DKFACDC24240
Description

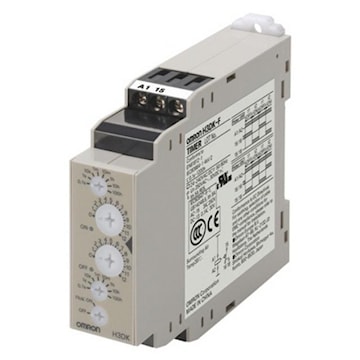

Timer, DIN rail mounting, 22.5mm, twin on & off-delay, 0.1s-12h, SPDT, 5 A, 24-240 VAC/D
Specifications
| Brand Name | Omron | Item Name | Analog Timer |
| Type | Off-Delay, Twin | Supply Voltage | 24 - 240 VAC/VDC |
| Timing Range | 0.1 - 1.2 sec | Contact Configuration | SPDT |
| Contact Rating | 5 A at 250 VAC, 5 A at 30 VDC, 0.15 A at 125 VDC | Dimensions | 22.5 mm W x 100 mm D x 89.4 mm H |
| Series/Model | H3DK | Amperage Rating | 5 A |
| Frequency Rating | 50/60 Hz | Power Consumption | 4.5 VA |
| Accuracy | +/-1% | Terminal Connection | Terminal Block |
| Resistance | 100 MO | Dielectric Strength | 2000 VAC at 50/60 Hz, 1000 VAC at 50/60 Hz |
| Operating Cycles | 10000000 Mechanical, 100000 Electrical | Degree of Protection | IP30 |
| Mounting | DIN Rail | Temperature Rating | -20 to 55 °C |
| Environmental Conditions | 25 - 85% Humidity | Standards | CE Certified, cRUus Listed, CCC Certified, LR Rated |
| UPC | 612647102706 |
Packages
| 1 - rarr_unit_1 |
