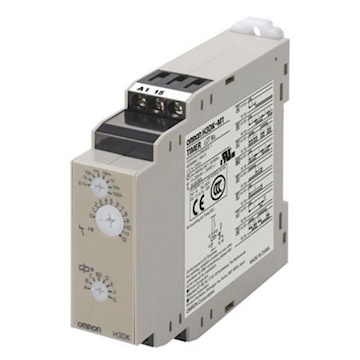

OMRON CANADA INC. H3DKM1ACDC24240 8 Mode AC/DC 24 to 240V SPDT
omrh3dkm1acdc24240
OMRON CANADA INC. H3DKM1ACDC24240 8 Mode AC/DC 24 to 240V SPDT
Price
$140.00
/ EA
Inventory
Available for backorder
1for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:H3DKM1ACDC24240
Description
Timer, DIN-rail mounting, multi range, multi mode timer, 8 modes incl. off-delay, 1 output relay, 24 to 240 VAC/DC
Specifications
| Brand Name | Omron | Item Name | Analog Timer |
| Type | Multi-Mode | Supply Voltage | 24 - 240 VAC/VDC |
| Timing Range | 0.1 - 1.2 sec | Contact Configuration | SPDT |
| Contact Rating | 5 A at 250 VAC, 5 A at 30 VDC, 0.15 A at 125 VDC | Dimensions | 22.5 mm W x 100 mm D x 89.4 mm H |
| Series/Model | H3DK | Frequency Rating | 50/60 Hz |
| Power Consumption | 4.5 VA at 240 VAC, 0.6 W at 12 VDC | Accuracy | +/-1% |
| Terminal Connection | Terminal Block | Resistance | 100 MO |
| Dielectric Strength | 2000 VAC at 50/60 Hz, 1000 VAC at 50/60 Hz | Operating Cycles | 10000000 Mechanical, 100000 Electrical |
| Degree of Protection | IP30 | Mounting | DIN Rail |
| Temperature Rating | -20 to 55 °C | Environmental Conditions | 25 - 85% Humidity |
| Standards | CE Certified, cRUus Listed, CCC Certified, LR Rated | UPC | 612647102711 |
