omrh3crf8nac100240dc100
OMRON CANADA INC. H3CRF8NAC100240DC100 TIMER REPEAT CYCLE
omrh3crf8nac100240dc100
OMRON CANADA INC. H3CRF8NAC100240DC100 TIMER REPEAT CYCLE
Price
$194.00
/ EA
Inventory
4for delivery
0for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:H3CRF8NAC100240DC100
Description

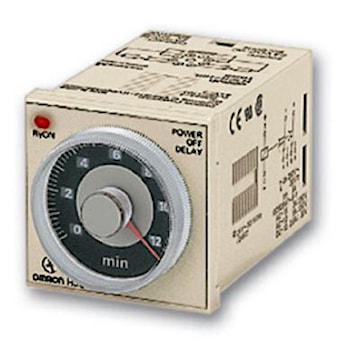

Solid-state Twin Timer with 8-pin socket, flicker ON start mode, 0.05 s to 300 h models time range, 100 to 240 VAC, 100 to 125 VDC supply voltage.
Specifications
| Brand Name | Omron | Item Name | Solid State Timer |
| Type | Flicker On Start, Twin | Supply Voltage | 100 - 240 VAC, 100 VDC |
| Timing Range | 0.05 sec - 300 hr | Contact Configuration | DPDT |
| Contact Rating | 5 A at 250 VAC/30 VDC | Reset Time | 0.1 sec |
| Dimensions | 45 mm W x 84 mm D x 48 mm H | Series/Model | H3CR-F |
| Frequency Rating | 50/60 Hz | Power Consumption | 2.1 W at 240 VAC |
| Accuracy | +/-0.2% | Terminal Connection | Plug-In, 8-Pin |
| Resistance | 100 MO | Dielectric Strength | 2000 VAC at 50/60 Hz, 1000 VAC at 50/60 Hz |
| Operating Cycles | 20000000 Mechanical, 100000 Electrical | Color/Finish | Light Gray |
| Degree of Protection | IP40 | Mounting | Panel |
| Temperature Rating | -10 to 55 °C | Environmental Conditions | 35 - 85% Humidity |
| Warranty | 12 mon | Standards | CCC Certified, CE Certified, CSA Certified, LR Rated, RU Listed |
