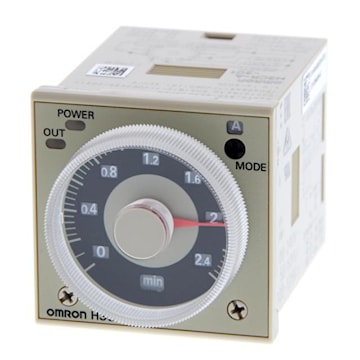

OMRON CANADA INC. H3CRA8AC100240DC100125 4 Multi-Function Timer 8pin
omrh3cra8ac100240dc1001
OMRON CANADA INC. H3CRA8AC100240DC100125 4 Multi-Function Timer 8pin
Price
$166.00
/ EA
Inventory
18for delivery
5for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:H3CRA8AC100240DC100125
Description
Timer, plug-in, 8-pin, 1/16DIN (48 x 48 mm), on/flicker-on/flicker-off/interval/one-shot-delay, 0.05s-300h, DPDT, 5 A
Specifications
| Brand Name | Omron | Item Name | Solid State Timer |
| Type | 4-Multi-Function, On/Flicker-On/Flicker-Off/Interval/One-Shot-Delay | Supply Voltage | 100 - 240 VAC, 100 - 125 VDC |
| Timing Range | 0.05 sec - 300 hr | Contact Configuration | DPDT |
| Contact Rating | 5 A at 250 VAC/30 VDC, 0.15 A at 125 VDC | Reset Time | 0.1 sec |
| Dimensions | 45 mm W x 81.6 mm D x 48 mm H | Series/Model | H3CR-A |
| Amperage Rating | 5 A | Frequency Rating | 50/60 Hz |
| Power Consumption | 1.6 W (Relay ON), 1.1 W (Relay OFF) | Accuracy | +/-0.2% |
| Terminal Connection | Plug-In, 8-Pin | Resistance | 100 MO |
| Dielectric Strength | 2000 VAC at 50/60 Hz, 1000 VAC at 50/60 Hz | Operating Cycles | 20000000 Mechanical, 100000 Electrical |
| Color/Finish | Light Gray | Degree of Protection | IP40 |
| Mounting | Panel | Temperature Rating | -10 to 55 °C |
| Environmental Conditions | 35 - 85% Humidity | Warranty | 12 mon |
| Standards | CCC Certified, CE Certified, CSA Certified, LR Rated, RU Listed | UPC | 612647102685 |
Packages
| 1 - rarr_unit_1 |
