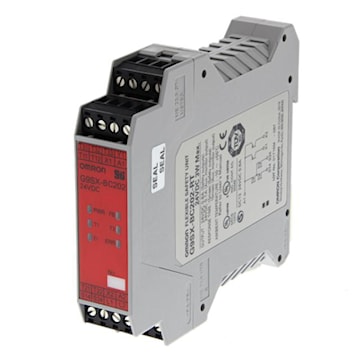

OMRON CANADA INC. G9SXBC202RTDC24 G9SX-BC202-RT DC24
omrg9sxbc202rtdc24
OMRON CANADA INC. G9SXBC202RTDC24 G9SX-BC202-RT DC24
Price
$482.00
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:G9SXBC202RTDC24
Description
Basic unit, 2 x NO solid state safety outputs (1 A), 2 x NO solid state auxs, 2 logic AND outputs, 1 or 2 channel input, screw terminals
Specifications
| Brand Name | Omron | Item Name | Safety Relay Unit |
| Voltage Rating | 24 VDC | Contact Configuration | 2 NO |
| Terminal Connection | Spring Cage | Series/Model | G9SX |
| Power Rating | 3 W | Dielectric Strength | 500 VAC |
| Operate Time | 50 Millisecond | Release Time | 15 Millisecond |
| Dimensions | 23 mm W x 115 mm D x 112 mm H | Mounting Type | DIN Rail |
| Temperature Rating | -10 to 55 °C | Environmental Conditions | 25 - 85% Humidity |
| Standards | CE Certified, CSA Certified, cULus Listed, SUD Certified, TUV Certified, UL Listed | UPC | 612647105535 |
Packages
| 1 - rarr_unit_1 |
