omrg9se401

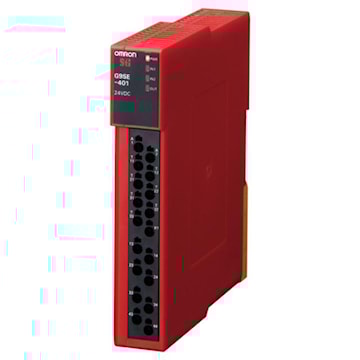

OMRON CANADA INC. G9SE401 SAFETY UNIT, 4+1 O/P
omrg9se401
OMRON CANADA INC. G9SE401 SAFETY UNIT, 4+1 O/P
Price
$375.00
/ EA
Inventory
Available for backorder
1for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:G9SE401
Description
Safety relay unit, 24 VDC, 4 safety outputs 5 A max, aux. output
Specifications
| Brand Name | Omron | Item Name | Safety Relay Unit |
| Voltage Rating | 24 VDC | Contact Rating | 250 VAC at 5 A, 30 VDC at 5 A |
| Contact Configuration | DPST-NO | Terminal Connection | Spring Loaded |
| Series/Model | G9SE | Amperage Rating | 5 A |
| Power Rating | 3 W | Dielectric Strength | 2200 VDC, 1500 VAC |
| Resistance | 100 mO | Operating Cycles | 5000000 Mechanical, 50000 Electrical |
| Operate Time | 100 Millisecond | Release Time | 15 Millisecond |
| Dimensions | 22.5 mm W x 111.6 mm D x 133 mm H | Mounting Type | DIN Rail |
| Degree of Protection | IP20 | Temperature Rating | -10 to 55 °C |
| Environmental Conditions | 25 - 85% Humidity | Standards | CCC Certified, CE Certified, UL Listed |
| UPC | 612647178660 |
Packages
| 1 - rarr_unit_1 |
