omr445101041
OMRON CANADA INC. 445101041 SR104P01
omr445101041
OMRON CANADA INC. 445101041 SR104P01
Price
$708.00
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:445101041
Description

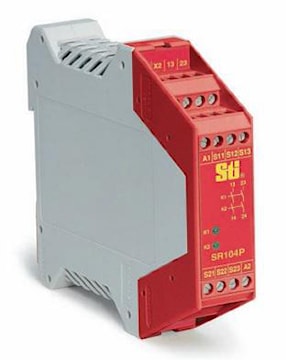

Two-Hand Control Safety Monitoring Relay. Power requirements-the SR104P will accept 24 VAC/DC and 115 VAC. Inputs-controls and monitors two-hand control switches to ensure that both switches are operated within 0.5 seconds of each other. Outputs-the SR104P has 2 N/O outputs to route power to the coils of power contactors. External Device Monitoring (EDM) is provided with a N/C loop between X1 and X2 on the SR104P.
Specifications
| Brand Name | Omron | Item Name | Safety Monitoring Relay |
| Voltage Rating | 24 VAC/VDC | Type | Two-Hand Control |
| Series/Model | SR104P01 | Mounting | DIN Rail |
| Material | Fiber Filled Polyamide 6.6 | Color/Finish | Red |
| NEMA Rating | NEMA 1 | Degree of Protection | IP20 (Terminal), IP40 (Housing) |
| Temperature Rating | -15 to 40 °C | Dimensions | 114 mm L x 45 mm W x 99 mm H |
| Standards | BG, cULus Listed, EN 574 Cat. IIIC, EN 60204-1, EN 954-1, VDE 0113-1, UL Listed | Application | For Stand Alone Applications |
| UPC | 612647105737 |
