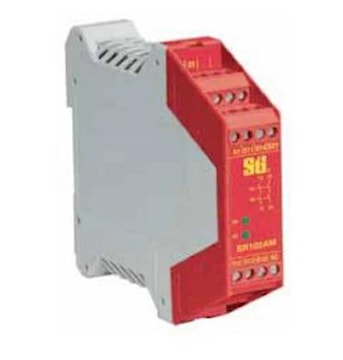

OMRON CANADA INC. 445101031 SR103AM01

Dual-Channel Safety Monitoring Relay. Power requirements-the SR103AM will accept 24 VAC/DC or 115 VAC. Inputs-the SR103AM will accept single or dual N/C inputs or dual inputs from a light curtain (see SR102AM for application wiring for a light curtain). Outputs-the SR103AM has 3 N/O outputs to route power to the coils of power contactors, plus 1 N/C auxiliary output for signaling purposes. External Device Monitoring (EDM) is provided with a N/C loop between S11/S12 and S21 on the SR103AM. Monitored manual or automatic/manual reset modes are available on the SR103AM. Monitored manual reset requires closure of the reset circuit followed by opening of the circuit. Reset occurs when circuit is opened. Auto reset requires only closure of the reset circuit as reset occurs when circuit is closed.
