OMRON CANADA INC. MY2NCRAC110120S SUPER MY
omrmy2ncrac110120s
OMRON CANADA INC. MY2NCRAC110120S SUPER MY
Price
$46.13
/ EA
Inventory
5for delivery
0for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:MY2NCRAC110120S
Description

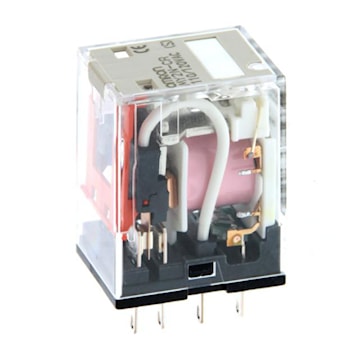

Relay, plug-in, 8-pin, DPDT, 10 A, mech & LED indicators, coil suppressor, label facility, 110/120 VAC
Specifications
| Brand Name | Omron | Item Name | Miniature Power Relay with Latching Lever |
| Voltage Rating | 250 VAC, 125 VDC | Amperage Rating | 10 A |
| Frequency Rating | 50/60 Hz | Power Rating | 1100 VA (Resistive Load), 440 VA (Inductive Load) |
| Operating Cycles | 18000 hr Mechanical, 1800 hr Electrical | Contact Configuration | DPDT |
| Type | Industrial | Series/Model | MY |
| Number of Poles | 2 | Contact Rating | 5 A at 250 VAC, 5 A at 30 VDC (Resistive Load), 2 A at 250 VAC, 2 A at 30 VDC (Inductive Load) |
| Coil Rating | 110 VAC at 9.9/8.4 mA, 120 VAC at 10.8/9.2 mA | Operate Time | 20 Millisecond |
| Release Time | 20 Millisecond | Connection | Plug-In, 8-Pin |
| Contact Material | Silver | Mounting | Socket |
| Dielectric Strength | 2000 VAC, 1000 VAC | Resistance | 4430 O |
| Temperature Rating | -55 to 60 °C | Dimensions | 21.5 in L x 28 in W x 42.4 in H |
| Standards | CE Certified, CSA Certified, DVE Compliant, RU Listed | UPC | 612647103143 |
