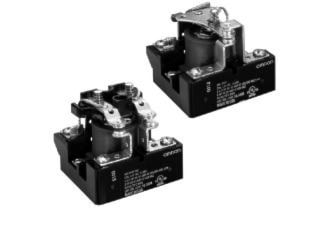

OMRON CANADA INC. MGN2CMAC120 POWER RELAY
Description
30A Heavy Duty Relay. Class F coil insulation system for 155°C (311°F). Coil molded in DuPont Rynite® for environmental protection. Rugged construction rivets terminals to base. CULUS Listed. Short Circuit Current Rating (SCCR) of 5kA, 600VAC.
Specifications
Brand Name | Omron | Item Name | Power Relay |
Type | Heavy-Duty, Long Base | Voltage Rating | 120 V |
Coil Rating | 110/115/120/125 VAC | Contact Rating | 600 VAC at 30 A |
Contact Configuration | DPDT | Terminal Connection | Screw |
Series/Model | MGN | Amperage Rating | 30 A |
Frequency Rating | 60 Hz | Power Rating | 7200 VA |
Contact Material | Silver Alloy | Resistance | 100 MO |
Operate Time | 30 Millisecond | Release Time | 30 Millisecond |
Dimensions | 84.33 mm L x 60.45 mm W x 63.5 mm H | Mounting Type | Panel |
Temperature Rating | -45 to 80 °C | Standards | UL E323870 |
UPC | 612647104861 |
