omrg7l2atubjcbac24
OMRON CANADA INC. G7L2ATUBJCBAC24 RELAY DPST-NO QC Ubrkt TB 24VA
omrg7l2atubjcbac24
OMRON CANADA INC. G7L2ATUBJCBAC24 RELAY DPST-NO QC Ubrkt TB 24VA
Price
$12.59
$33.25
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:G7L2ATUBJCBAC24
Description

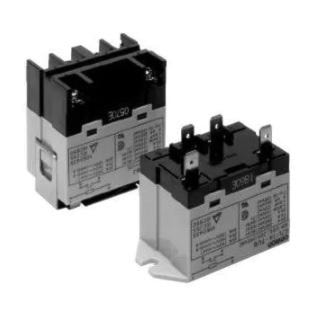

Power relay, quick-connect terminals, upper bracket, DPST-NO, 25 A, 24 VAC
Specifications
| Brand Name | Omron | Item Name | Power Relay with Test Button |
| Voltage Rating | 250 V | Coil Rating | 24 VAC |
| Contact Rating | 300 VAC at 25 A | Contact Configuration | DPST-NO |
| Number of Poles | 2 | Terminal Connection | Quick-Connect |
| Series/Model | G7L | Amperage Rating | 25 A |
| Contact Material | Silver Alloy | Dielectric Strength | 4000 VAC, 2000 VAC |
| Resistance | 1000 MO | Operate Time | 30 Millisecond |
| Release Time | 30 Millisecond | Dimensions | 68.5 mm L x 35.5 mm W x 47 mm H |
| Mounting Type | Panel | Standards | CSA C22.2 No. 1, 14, C22.2 No. 950 Certified, EN61810-1, UL 508, 1950 Listed, UL Recognized, TUV Certified |
| UPC | 612647106169 |
Packages
| 1 - rarr_unit_1 |
