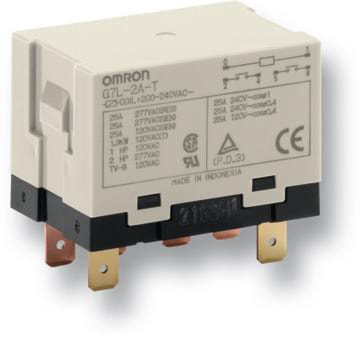

OMRON CANADA INC. G7L1ATUBJCBAC24 SPST-NO,QC,UB,TB,24VAC
Description
General Purpose Relay with quick connect terminal, upper bracket with test button, SPST-NO contact form and 24 VAC voltage. Ideally suited for high-inrush fluid pump controls: pool/spa, water processing, emergency, chemical industry.
Specifications
Brand Name | Omron | Item Name | Power Relay with Test Button |
Voltage Rating | 250 V | Coil Rating | 24 VAC |
Contact Rating | 300 VAC at 30 A | Contact Configuration | SPST-NO |
Number of Poles | 1 | Terminal Connection | Quick-Connect |
Series/Model | G7L | Amperage Rating | 30 A |
Contact Material | Silver Alloy | Dielectric Strength | 4000 VAC, 2000 VAC |
Resistance | 1000 MO | Operate Time | 30 Millisecond |
Release Time | 30 Millisecond | Dimensions | 68.5 mm L x 35.5 mm W x 47 mm H |
Mounting Type | Upper Bracket | Standards | CSA C22.2 No. 1, 14, C22.2 No. 950 Certified, EN61810-1, UL 508, 1950 Listed, UL Recognized, TUV Certified |
UPC | 612647110833 |
