OMRON CANADA INC. G6B47BNDDC24 G6B47BNDDC24
Description

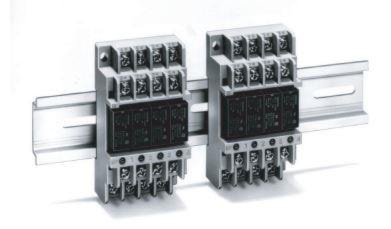

Terminal Relay with 4 poles (4PST-NO long-life circuit), DIN Track or screw mounting, Phillips screw (3.5 mm) terminals (4 independent points).
Specifications
Brand Name | Omron | Item Name | Compact Terminal Relay |
Type | Long Life Circuit | Voltage Rating | 5/12/24 VDC |
Contact Configuration | 4PST-NO | Number of Poles | 4 |
Terminal Connection | Phillips Screw | Amperage Rating | 35.5/19.1/10.7 mA |
Power Rating | 200 mW | Dielectric Strength | 2000 VAC, 1000 VAC, 250 VAC |
Resistance | 1000 MO | Operate Time | 10 Millisecond |
Release Time | 15 Millisecond | Dimensions | 28 mm L x 43 mm W x 78 mm H |
Mounting Type | DIN Track, Screw | Temperature Rating | -25 to 55 °C |
Packages
1 - rarr_unit_1 | 60 - rarr_unit_2 |
