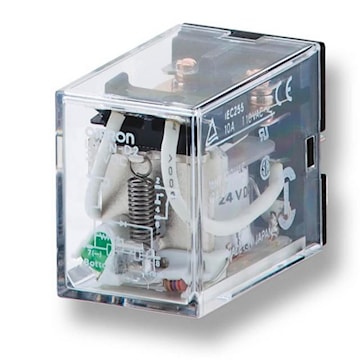

OMRON CANADA INC. LY2NDC24 GP RELAY
omrly2ndc24
OMRON CANADA INC. LY2NDC24 GP RELAY
Price
$29.81
/ EA
Inventory
25for delivery
3for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:LY2NDC24
Description
Relay, plug-in, 8-pin, DPDT, 10 A, LED indicator, 24 VDC
Specifications
| Brand Name | Omron | Item Name | General-Purpose Relay |
| Type | Standard | Voltage Rating | 250 VAC, 125 VDC |
| Coil Rating | 24 VDC at 36.9 mA | Contact Rating | 10 A at 110 VAC, 10 A at 24 VDC, 10 A at 250 VAC (Resistive Load), 7.5 A at 110 VAC, 5 A at 24 VDC (Inductive Load) |
| Contact Configuration | DPDT | Number of Poles | 2 |
| Terminal Connection | Plug-In, 8-Pin | Series/Model | LY |
| Amperage Rating | 10 A | Frequency Rating | 50/60 Hz |
| Power Rating | 0.9 W | Contact Material | Silver |
| Dielectric Strength | 2000 VAC at 50/60 Hz, 1000 VAC at 50/60 Hz | Resistance | 650 O |
| Operating Cycles | 18000 hr Mechanical, 1800 hr Electrical | Operate Time | 25 Millisecond |
| Release Time | 25 Millisecond | Indicator Type | LED |
| Dimensions | 42.4 mm L x 28 mm W x 21.5 mm H | Mounting Type | Socket |
| Temperature Rating | -25 to 55 °C | Environmental Conditions | 5 - 85% Humidity |
| Standards | UL E41643, CSA LR31928, TUV R50030064, EN 61810-1, VDE 6359, EN 61810-1, LR 00/10047 | UPC | 612647103021 |
