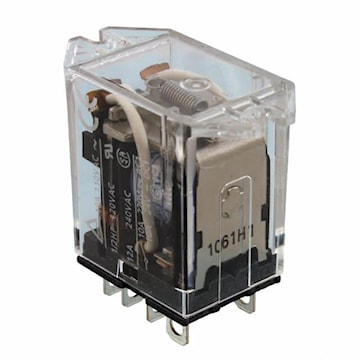

OMRON CANADA INC. LY2FAC24 GP RELAY

Price $21.85 / EA
Inventory
Available for backorder
0for pick up at Burlington
Qty EA
Manufacturer:OMRON CANADA INC.
Manufacturer #:LY2FAC24

Description

Relay, flange mount, plug-in, DPDT, 10 A, 24 VAC

Specifications

Brand Name Omron Item Name General-Purpose Relay
Type Standard Voltage Rating 250 VAC, 125 VDC
Coil Rating 24 VAC at 53.8 mA at 50 Hz, 46 mA at 60 Hz Contact Rating 10 A at 110 VAC, 10 A at 24 VDC, 10 A at 250 VAC (Resistive Load), 7.5 A at 110 VAC, 5 A at 24 VDC (Inductive Load)
Contact Configuration DPDT Number of Poles 2
Terminal Connection Plug-In Series/Model LY
Amperage Rating 10 A Frequency Rating 50/60 Hz
Power Rating 1.2 W Contact Material Silver
Dielectric Strength 2000 VAC at 50/60 Hz, 1000 VAC at 50/60 Hz Resistance 180 O
Operating Cycles 18000 hr Mechanical, 1800 hr Electrical Operate Time 25 Millisecond
Release Time 25 Millisecond Indicator Type LED
Dimensions 42.4 mm L x 28 mm W x 21.5 mm H Mounting Type Case-Surface
Temperature Rating -25 to 55 °C Environmental Conditions 5 - 85% Humidity
Standards UL E41643, CSA LR31928, TUV R50030064, EN 61810-1, VDE 6359, EN 61810-1, LR 00/10047 UPC 612647103008
