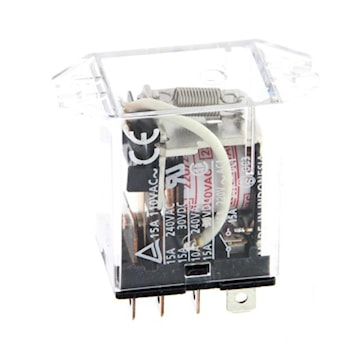

OMRON CANADA INC. LY1FAC110120 GP RELAY
Description
Relay, flange mount, plug-in, SPDT, 15 A, 110/120 VAC
Specifications
Brand Name | Omron | Item Name | General-Purpose Relay |
Type | Standard | Voltage Rating | 250 VAC, 125 VDC |
Coil Rating | 110/120 VAC at 9.9/10.8 mA at 50 Hz, 8.4/9.2 mA at 60 Hz | Contact Rating | 15 A at 110 VAC, 15 A at 24 VDC, 10 A at 250 VAC (Resistive Load), 10 A at 110 VAC, 7 A at 24 VDC (Inductive Load) |
Contact Configuration | SPDT | Number of Poles | 1 |
Terminal Connection | Plug-In | Series/Model | LY |
Amperage Rating | 15 A | Frequency Rating | 50/60 Hz |
Power Rating | 1.1 W | Contact Material | Silver |
Dielectric Strength | 2000 VAC at 50/60 Hz, 1000 VAC at 50/60 Hz | Resistance | 4430 O |
Operating Cycles | 18000 hr Mechanical, 1800 hr Electrical | Operate Time | 25 Millisecond |
Release Time | 25 Millisecond | Indicator Type | LED |
Dimensions | 42.4 mm L x 28 mm W x 21.5 mm H | Mounting Type | Case-Surface |
Temperature Rating | -25 to 55 °C | Environmental Conditions | 5 - 85% Humidity |
Standards | UL E41643, CSA LR31928, TUV R50030064, EN 61810-1, VDE 6359, EN 61810-1, LR 00/10047 | UPC | 612647151867 |
