omrg7l2abubjcbac100120

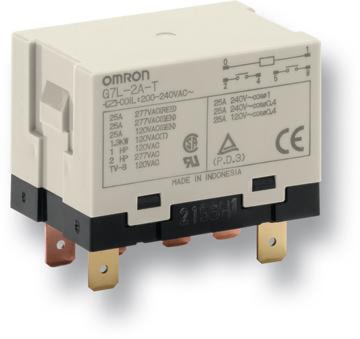

OMRON CANADA INC. G7L2ABUBJCBAC100120 GP POWER RELAY
omrg7l2abubjcbac100120
OMRON CANADA INC. G7L2ABUBJCBAC100120 GP POWER RELAY
Price
$47.57
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:G7L2ABUBJCBAC100120
Description
General Purpose Relay with screw terminal, upper bracket with test button, DPST-NO contact form and 100 to 120 VAC voltage. Ideally suited for high-inrush fluid pump controls: pool/spa, water processing, emergency, chemical industry.
Specifications
| Brand Name | Omron | Item Name | General-Purpose Relay with Upper Bracket and Test Button |
| Voltage Rating | 250 V | Amperage Rating | 25 A |
| Power Rating | 5500 VA | Contact Configuration | DPST-NO |
| Number of Poles | 2 | Contact Rating | 300 VDC at 25 A |
| Coil Rating | 110/115/120/125 VAC | Connection | Screw |
| Contact Material | Silver Alloy | Mounting | Panel |
| Resistance | 50 O | Dimensions | 2.696 in L x 1.318 in W x 1.85 in D |
| Standards | CE Certified, CSA Certified, UL Listed | UPC | 612647106158 |
Packages
| 1 - rarr_unit_1 |
