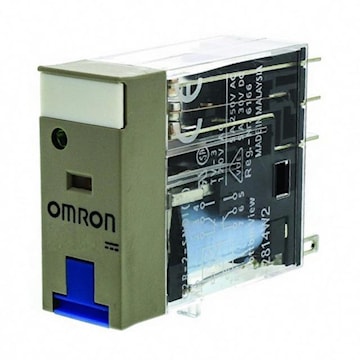

OMRON CANADA INC. G2R2SNDIDC24S SPDT diod LED P-T-B 24VDC
omrg2r2sndidc24s
OMRON CANADA INC. G2R2SNDIDC24S SPDT diod LED P-T-B 24VDC
Price
$37.47
/ EA
Inventory
16for delivery
0for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:G2R2SNDIDC24S
Description
Relay, plug-in, 8-pin, DPDT, 5 A, mech & LED indicators, coil suppressor, lockable test button, label facility
Specifications
| Brand Name | Omron | Item Name | General-Purpose Relay |
| Type | Slim | Voltage Rating | 380 VAC, 125 VDC |
| Coil Rating | 24 VDC at 21.6 mA | Contact Rating | 5 A at 250 VAC, 5 A at 30 VDC (Resistive Load), 2 A at 250 VAC, 3 A at 30 VDC (Inductive Load) |
| Contact Configuration | 2 Form C DPDT | Number of Poles | 2 |
| Terminal Connection | Plug-In, 8-Pin | Series/Model | G2RS |
| Amperage Rating | 5 A | Frequency Rating | 50/60 Hz |
| Power Rating | 530 mW | Contact Material | Silver Alloy |
| Dielectric Strength | 5000 VAC, 3000 VAC, 1000 VAC | Resistance | 1.113 kO |
| Operating Cycles | 18000 hr Mechanical, 1800 hr Electrical | Operate Time | 15 Millisecond |
| Release Time | 15 Millisecond AC, 10 Millisecond DC | Indicator Type | Mechanical, LED |
| Dimensions | 29 mm L x 13 mm W x 35.5 mm | Mounting Type | Through Hole |
| Temperature Rating | -40 to 70 °C | Environmental Conditions | 5 - 85% Humidity |
| Standards | UL 508, CSA 22.2 No.0, No.14, IEC/VDE Certified, LR Rated | UPC | 612647102452 |
Packages
| 1 - rarr_unit_1 |
