omrg2r2sdc24s

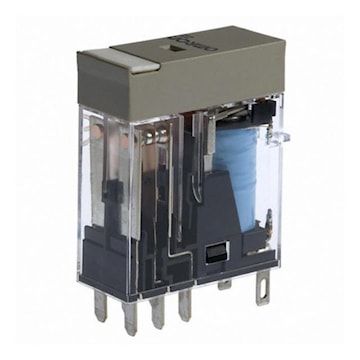

OMRON CANADA INC. G2R2SDC24S DPDT 24VDC
omrg2r2sdc24s
OMRON CANADA INC. G2R2SDC24S DPDT 24VDC
Price
$16.35
/ EA
Inventory
25for delivery
4for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:G2R2SDC24S
Description
Relay, plug-in, 8-pin, DPDT, 5 A, label facility, 24 VDC
Specifications
| Brand Name | Omron | Item Name | General-Purpose Relay |
| Voltage Rating | 380 VAC, 125 VDC | Coil Rating | 24 VDC at 21.6 mA |
| Contact Rating | 5 A at 250 VAC, 5 A at 30 VDC (Resistive Load), 2 A at 250 VAC, 3 A at 30 VDC (Inductive Load) | Contact Configuration | 2 Form C DPDT |
| Number of Poles | 2 | Terminal Connection | Plug-In, 8-Pin |
| Series/Model | G2RS | Amperage Rating | 5 A |
| Frequency Rating | 50/60 Hz | Power Rating | 530 mW |
| Contact Material | Silver Alloy | Dielectric Strength | 5000 VAC, 3000 VAC, 1000 VAC |
| Resistance | 1.113 kO | Operating Cycles | 18000 hr Mechanical, 1800 hr Electrical |
| Operate Time | 15 Millisecond | Release Time | 15 Millisecond AC, 10 Millisecond DC |
| Indicator Type | Mechanical | Dimensions | 29 mm L x 13 mm W x 35.5 mm |
| Mounting Type | Through Hole | Temperature Rating | -40 to 70 °C |
| Environmental Conditions | 5 - 85% Humidity | Standards | UL 508, CSA 22.2 No.0, No.14, IEC/VDE Certified, LR Rated |
| UPC | 612647102439 |
Packages
| 1 - rarr_unit_1 |
