omrnxod5256

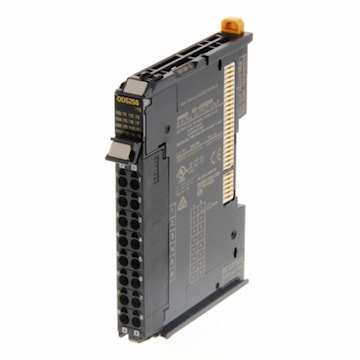

OMRON CANADA INC. NXOD5256 NX 16Pt 12-24VDC PNP Trans Out
omrnxod5256
OMRON CANADA INC. NXOD5256 NX 16Pt 12-24VDC PNP Trans Out
Price
$268.00
/ EA
Inventory
10for delivery
3for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:NXOD5256
Description
16 Digital Outputs, Standard speed, PNP 24 VDC, 0.5 A/point, 4 A/NX Unit, screwless push-in connector, 12 mm wide
Specifications
| Brand Name | Omron | Item Name | Output Module |
| Type | Digital | Voltage Rating | 15 - 28.8 V |
| Output | 16 Digital | Dimensions | 12 mm W x 80.1 mm D x 104.5 mm H |
| Series/Model | NX | Amperage Rating | 0.5 A |
| Response Time | 0.5 - 1 Millisecond | Connection | Push-In, 1-Wire |
| Mounting Type | Panel | Degree of Protection | IP20 |
| Temperature Rating | 0 - 55 °C | Environmental Conditions | 10 - 95% Humidity, -25 to 70 °C Storage Temperature |
| Standards | cULus Listed (UL508) or Listed (UL 61010-2-201), ANSI/ISA 12.12.01 or UL121201, EU: EN 61131-2 or EN 61010-2-201, C-Tick or RCM, KC, NK, LR | UPC | 612647103371 |
