omrd4n2a72
OMRON CANADA INC. D4N2A72 D4N-2A72
omrd4n2a72
OMRON CANADA INC. D4N2A72 D4N-2A72
Price
$33.95
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:D4N2A72
Description

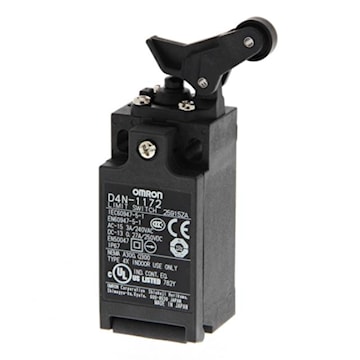

Limit switch, One-way roller arm lever (vertical), 1NC/1NO (slow-action), 1NC/1NO (slow-action), G1/2 (1-conduit)
Specifications
| Brand Name | Omron | Item Name | Safety Limit Switch |
| Type | Vertical | Actuator | One-Way Action Roller Arm Lever |
| Voltage Rating | 250 VAC | Contact Configuration | 1 NO, 1 NC |
| Travel | 4 mm Pretravel NC, 4.3 mm Pretravel NO, 5 mm Overtravel (OT) | Dimensions | 47 mm H x 22 mm W |
| Series/Model | D4N | Action | Slow |
| Amperage Rating | 1 mA | Operating Cycles | 15000000 Mechanical, 500000 Electrical |
| Mounting Type | Front | Degree of Protection | IP67 |
| Connection Type | G1/2 Conduit | Temperature Rating | -30 to 70 °C |
| Environmental Conditions | 95% Humidity, 10 - 55 Hz Vibration, 1000 m/s² Destruction Shock, 300 m/s² Malfunction Shock | Standards | CSA C22.2 No. 14, CQC(CCC) GB/T14048.5, TUV (EN60947-5-1), CCC (GB/T14048.5), EN50047, EN60204-1, EN ISO 14119, GS-ET-15, UL 508 |
| UPC | 612647119202 |
Packages
| 1 - rarr_unit_1 |
