omrd4n2120
OMRON CANADA INC. D4N2120 D4N-2120
omrd4n2120
OMRON CANADA INC. D4N2120 D4N-2120
Price
$38.91
/ EA
Inventory
4for delivery
3for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:D4N2120
Description

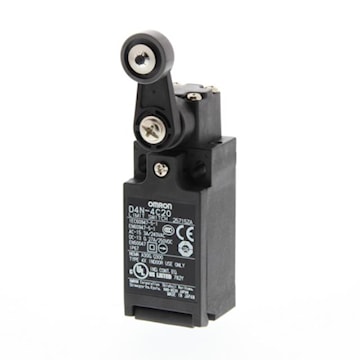

Limit switch, Roller lever (resin lever, resin roller), 1NC/1NO (snap-action), 1NC/1NO (snap-action), G1/2 (1-conduit)
Specifications
| Brand Name | Omron | Item Name | Safety Limit Switch |
| Actuator | Roller Lever | Voltage Rating | 250 VAC |
| Contact Configuration | 1 NO, 1 NC | Travel | 18 - 27° Pretravel, 40° Overtravel |
| Dimensions | 47 mm H x 22 mm W | Series/Model | D4N |
| Action | Snap | Amperage Rating | 1 mA |
| Operating Cycles | 15000000 Mechanical, 500000 Electrical | Mounting Type | Front |
| Degree of Protection | IP67 | Connection Type | G1/2 Conduit |
| Temperature Rating | -30 to 70 °C | Environmental Conditions | 95% Humidity, 10 - 55 Hz Vibration, 1000 m/s² Destruction Shock, 300 m/s² Malfunction Shock |
| Standards | CSA C22.2 No. 14, CQC(CCC) GB/T14048.5, TUV (EN60947-5-1), CCC (GB/T14048.5), EN50047, EN60204-1, EN ISO 14119, GS-ET-15, UL 508 | UPC | 612647105334 |
