OMRON CANADA INC. D4F12015R Safety Limit Switch 15M Cbl
omrd4f12015r
OMRON CANADA INC. D4F12015R Safety Limit Switch 15M Cbl
Price
$137.27
$281.00
/ EA
Inventory
Available for backorder
0for pick up at
Burlington
Manufacturer:OMRON CANADA INC.
Manufacturer #:D4F12015R
Description

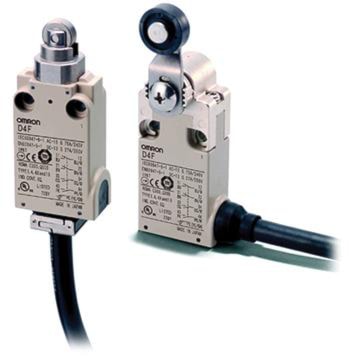

Small Safety Limit Switch with 1NC/1NO slow action switch, roller lever metal lever, resin roller, 5 m cable and horizontal pull outing direction of cable.
Specifications
| Brand Name | Omron | Item Name | Safety Limit Switch |
| Type | Horizontal | Actuator | Roller Lever |
| Voltage Rating | 250 V | Contact Configuration | 1 NO, 1 NC |
| Travel | 6° Pretravel, 40° Overtravel | Dimensions | 30 mm W |
| Series/Model | D4F | Action | Slow |
| Amperage Rating | 4 mA | Cable Length | 15 m |
| Operating Cycles | 10000000 Mechanical, 150000 Electrical | Degree of Protection | IP67 |
| Temperature Rating | -30 to 70 °C | Environmental Conditions | 95% Humidity, 10 - 55 Hz Vibration, 1000 m/s² Destruction Shock, 300 m/s² Malfunction Shock |
| Standards | CSA C22.2 No. 14, CCC (CQC) GB/T14048.5, TUV EN60947-5-1, UL508 | UPC | 612647240106 |
